Inventis Flute

Flute is a diagnostic middle ear analyzer, capable of performing incredibly fast and reliable automatic sequences of tympanometry and reflex threshold tests, as well as manual reflex and reflex decay tests, ETF test, and high frequency tympanometry.

The Models

Flute is available in three models: Basic, Plus and HF. The following table is an overview of the tests available on each version.

BASIC PLUS HF
Acoustic tympanometry
Manual tympanometry - -
Reflex test
Fixed intensity
Growing intensity
Automatic threshold
Manual - -
Acoustic reflex decay - -
Quick test (tymp. + reflex seq.)
ETF
TM intact -
Probe tones 226 Hz 226 Hz
1000 Hz(*)
226 Hz
1000 Hz
(*) Available through optioinal activation license

THE PROBE

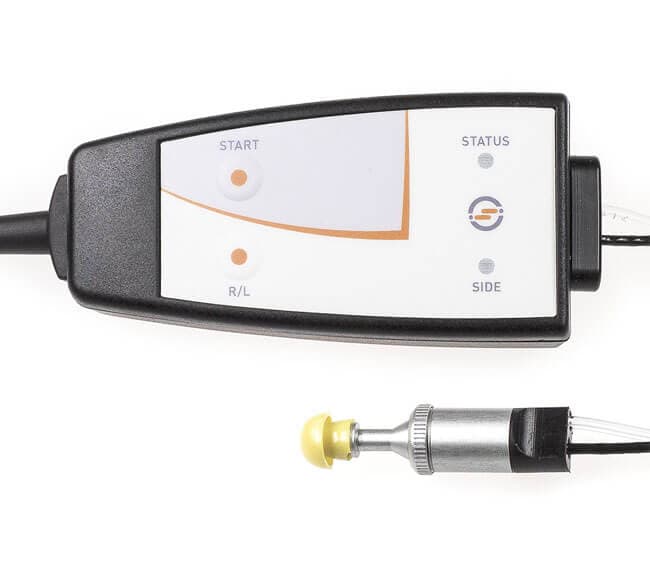

Flute features an extremely light, small and sturdy metal probe, which can be very rapidly disassembled and cleaned. The probe is connected to the small Control Box, through which you can select the ear and start the exam.

NOAH & MAESTRO INTEGRATION

Simply connect Flute to a USB port on your computer (no drivers needed), and you can transfer exam results into your Maestro or Noah database. With the live view feature, you can have a wide view of the examination in progress on the computer display.

Enquire now
