Biomed eOAE

When an acoustic signal hits the auditory system, a very quiet sound is sent back from the inner ear, called the otoacoustic emissions. A distinction is made between transitory otoacoustic emissions (TEOAE) and distorsively produced otoacoustic emissions (DPOAE).

Both TEOAE and DPOAE can be measured with the eOAE device. A special screening mode is implemented for performing screening examinations on newborns.

• Samplerate: 48 KHz
• ADC resolution: 24 Bit
• Touch display: 480x794 Pixel
• Weight device: only 320 gram
• 3700 mAh battery for long operating times
• Dimensions: 140x95x26 mm
• Completely dismountable and easy to clean probe
• Compatible with Sanibel™ ADI ear tips
• Easy charging via docking station
• Good disinfectability through touch screen
• Optional printer available

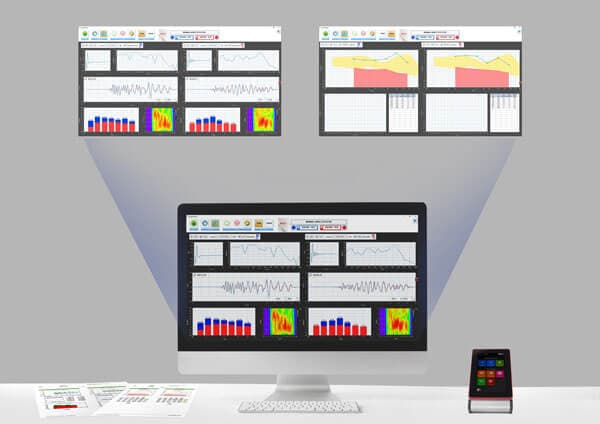

• Clear measurement data management also on the device
• Qwerz keyboard for convenient data entry on the device
• GDT-Interface
• Full integration into the eDM Diagnostic Manager
